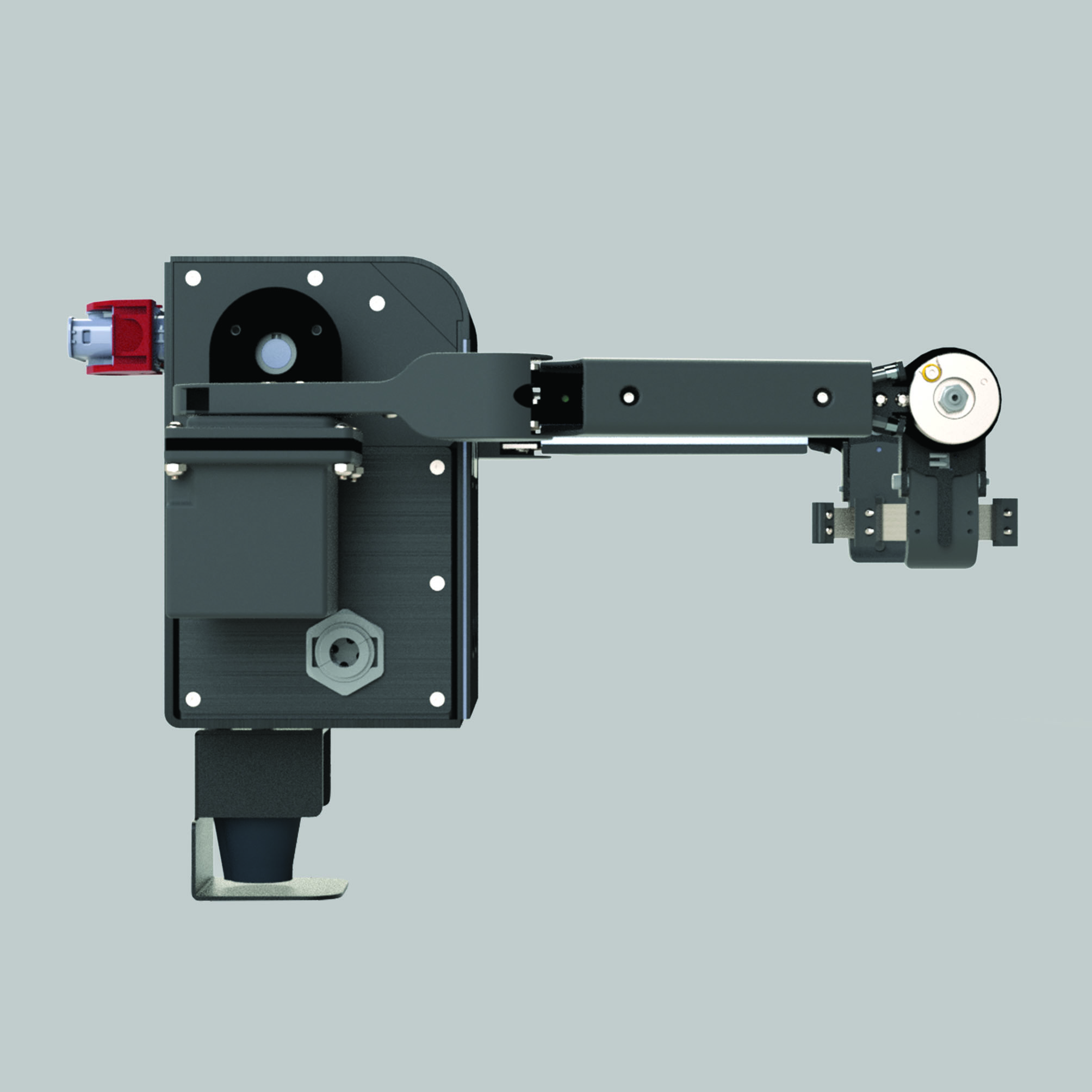

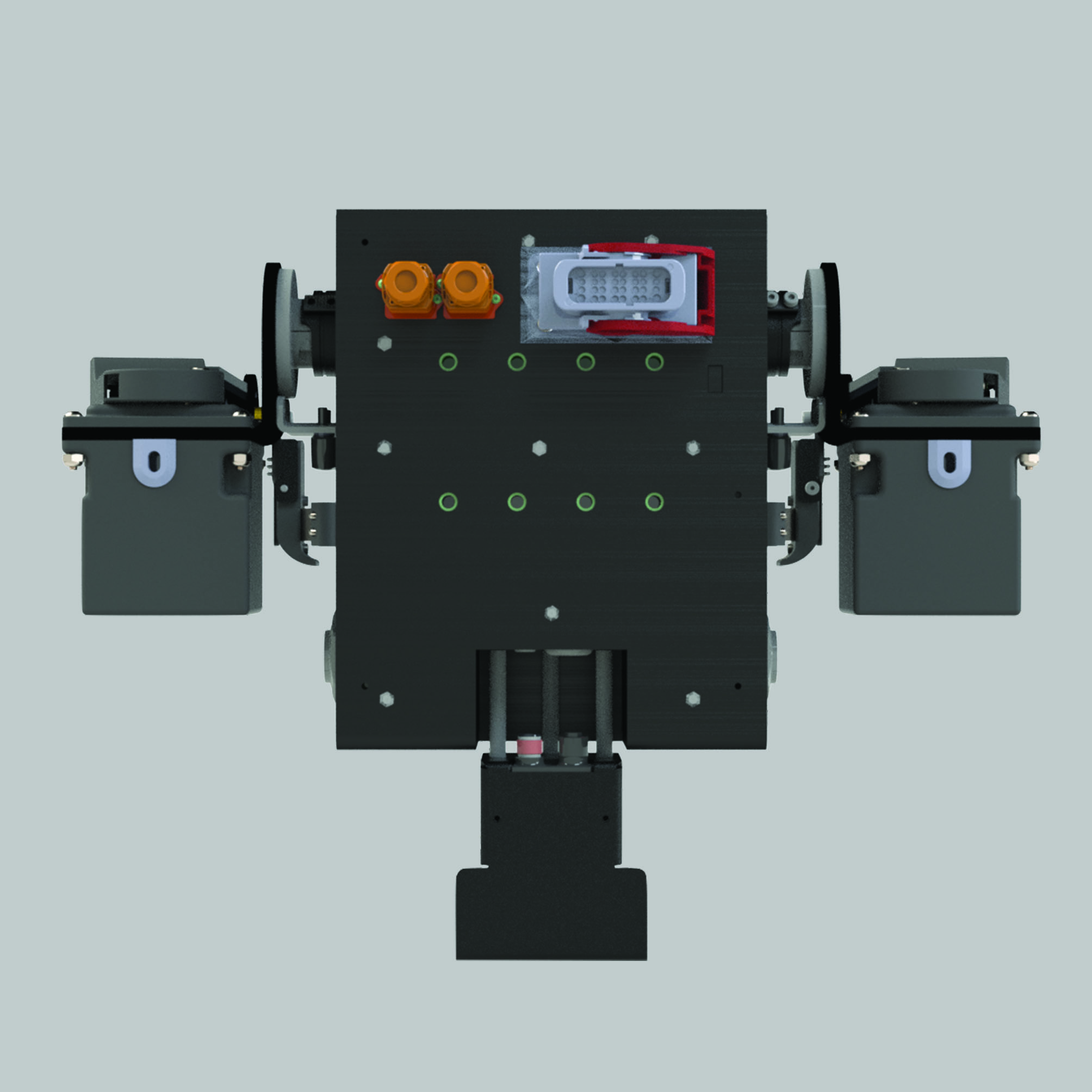

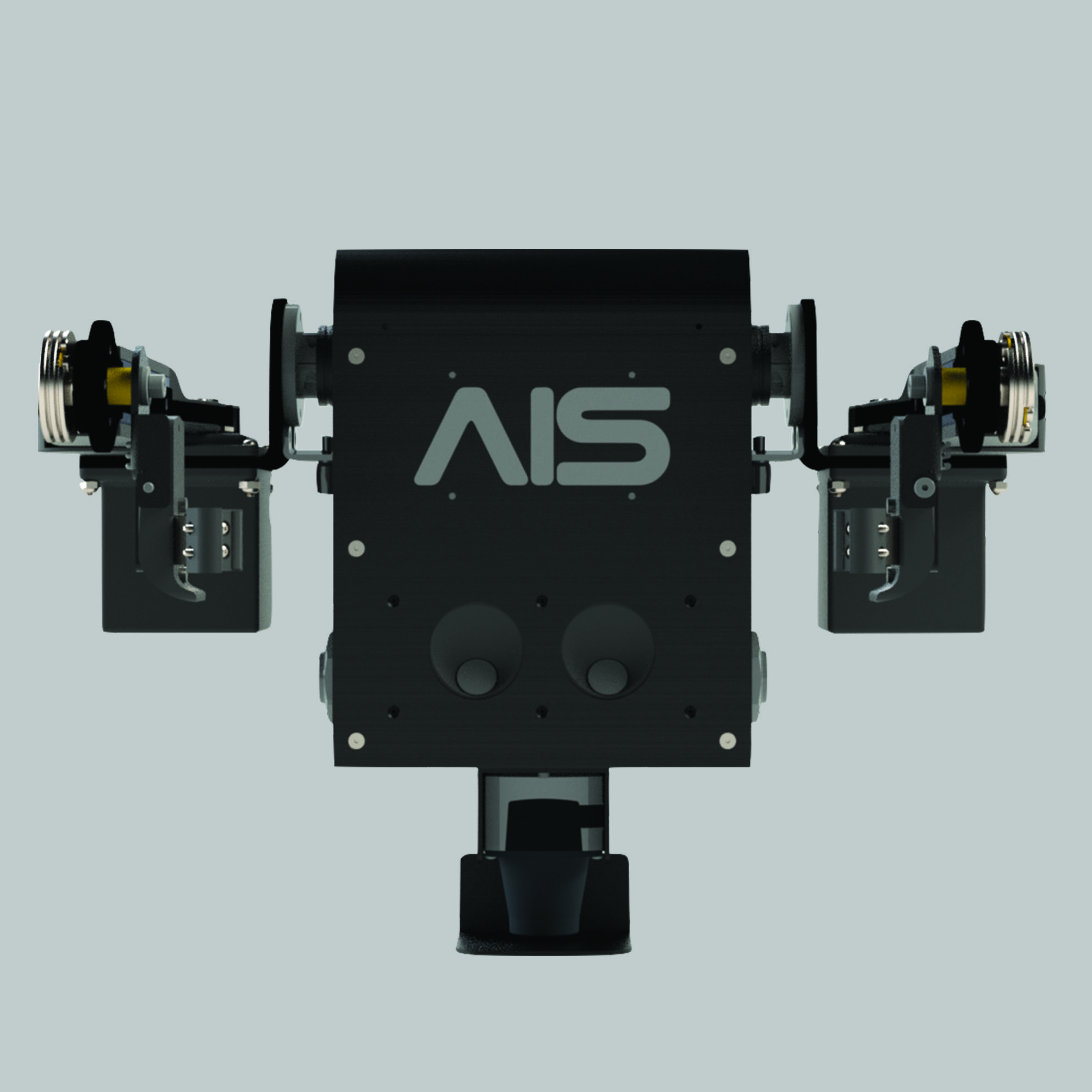

AIS Robot Manipulator Module

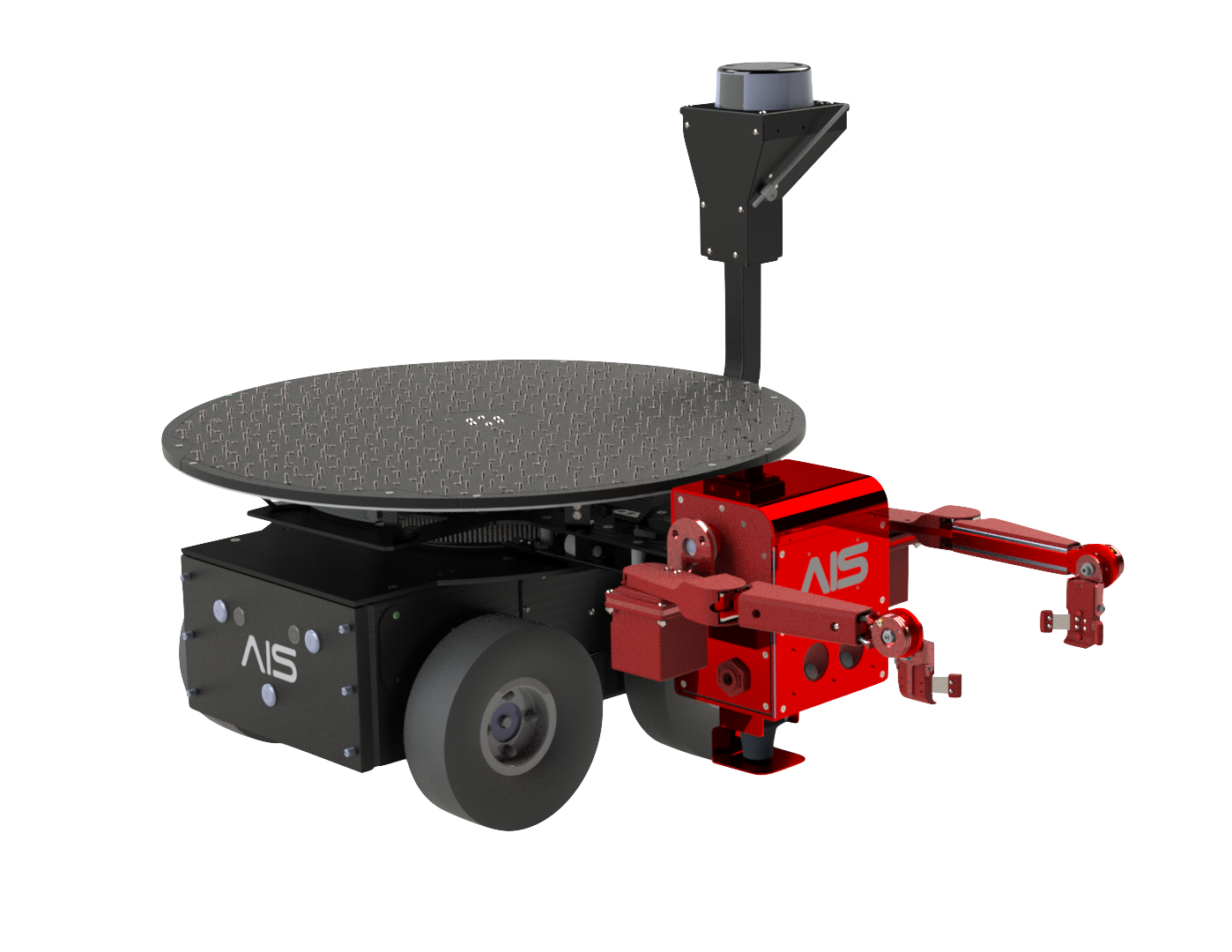

AIS manipulator is a module to load and unload objects on top of the base module while ensuring stability during the process.

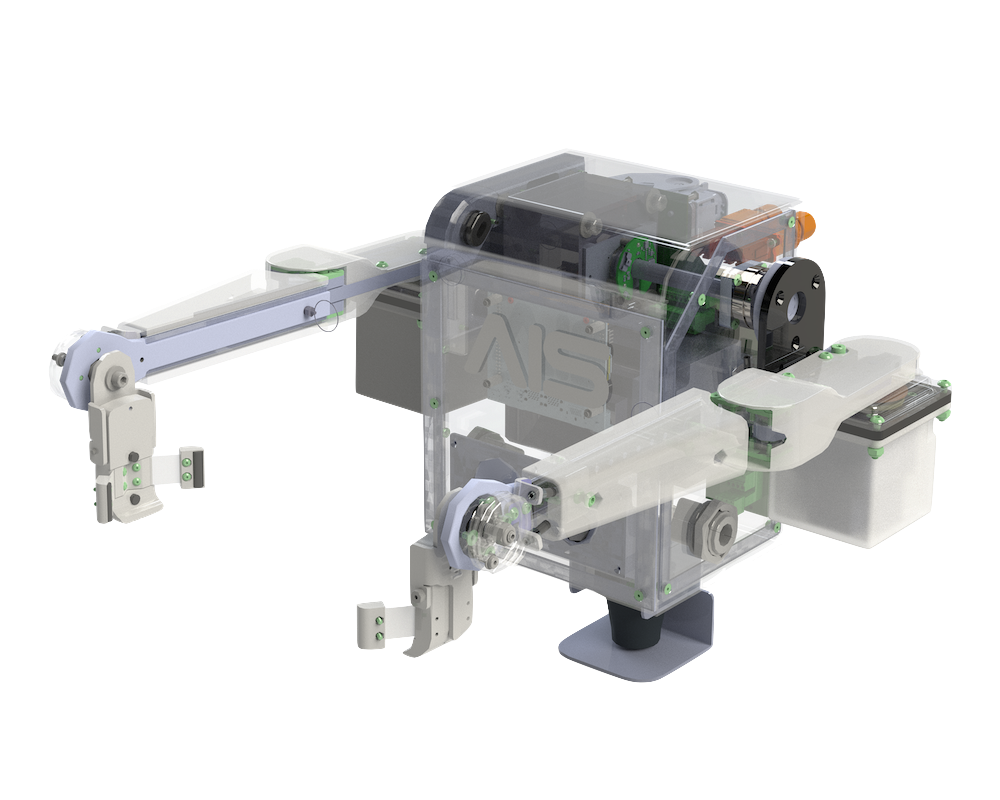

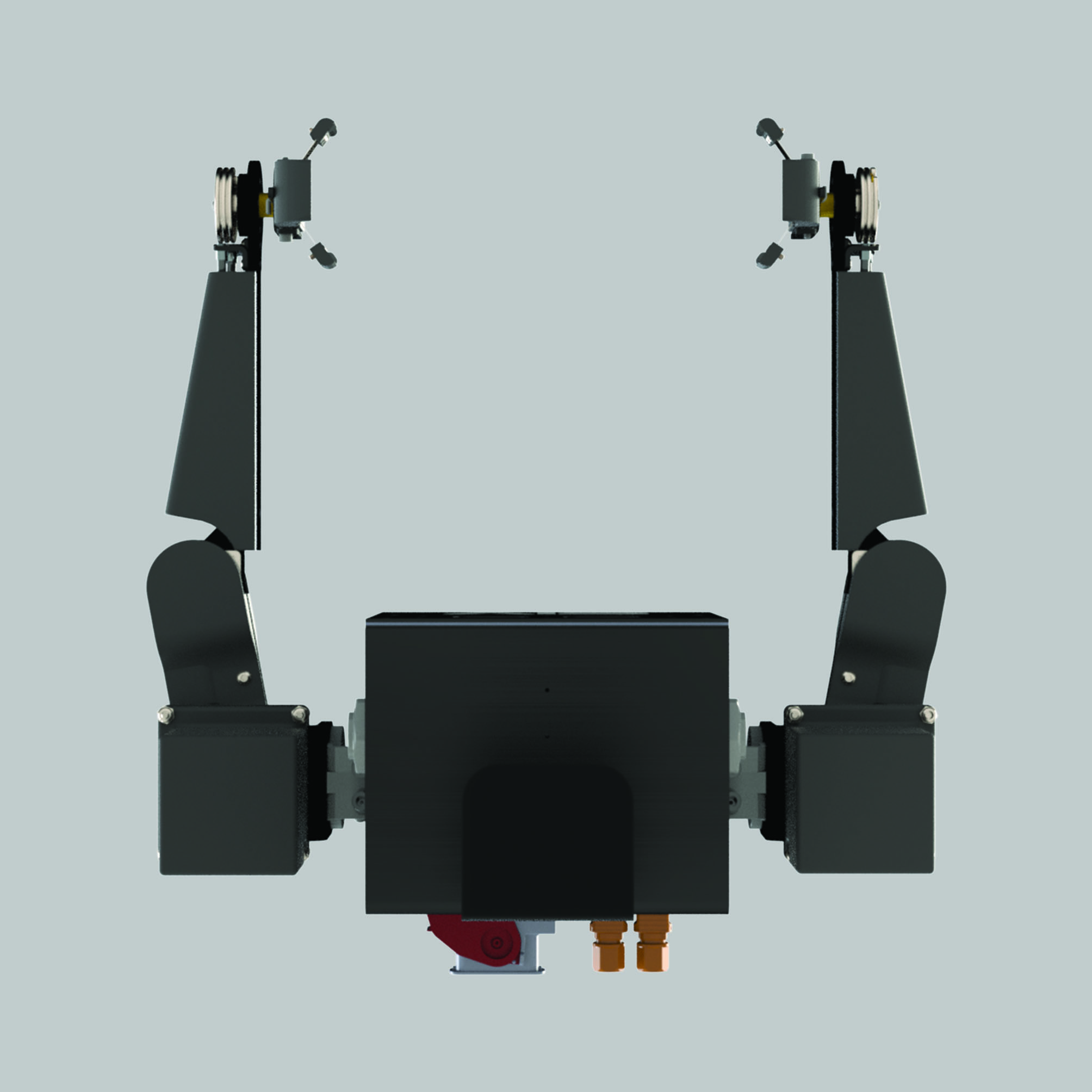

AIS Dual Arm Robot Manipulator is a pair of adjustable and customizable arms to load and unload objects on top of the base module while ensuring stability during the process.

Our rigorous testing ensures that the AIS Robot Manipulator operates in a variety of indoor and outdoor conditions. The ability to interact with various sized objects are adjustable using the operator user interface. Settings can be changed easily on the fly by the end user.

Smart Manipulator

Novel vision technologies including 2D LiDAR, depth camera and sensors enable the parallel manipulation of the module fingers.

Superior Performance

Flexible and adjustable, the robotic manipulator’s fingers are able to hold objects of different sizes and weights up to 22 lb.

Module Specifications

  • Dimensions: 46 cm x 45 cm x 35.5 cm (L x W x H)
  • Weight: 12.5 kg
  • Payload: up to 22 lb.
  • Fast load/unload cycle time: about 4 seconds
  • Operating Temp: 32 to 150 F
  • Environment: Indoor, Outdoor, Dirt, Dust, Sprinkler
  • Connectors: Standard Mechanical, Electrical, and Data Connections
  • Processing Unit: JETSON nano
  • Vision System: 2D LiDAR, Depth Camera
  • AIS Products use this module: BigTop – autonomously moving and spacing pots and Pruner – a trimming and pruning robot.
